Disjointed, corrupted, blocky or blank video when using High Input Performance Mode

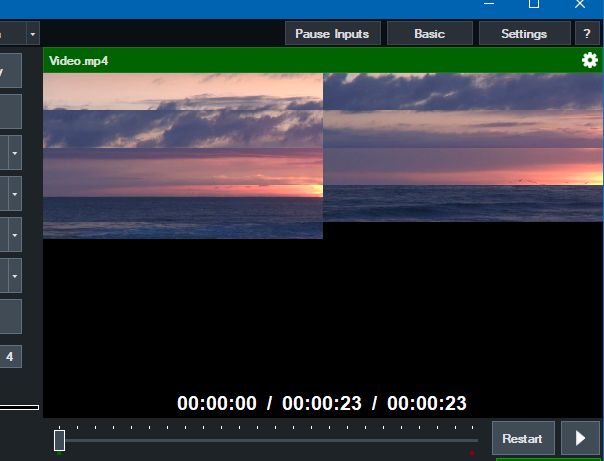

Certain inputs such as video, camera and NDI may look look disjointed or corrupt with a large amount of black space at the bottom of the preview like the following:
Video inputs may also appear blank with only audio working.
This is caused by an incorrect setting in the NVIDIA Control Panel. To fix this:
1. Open up the NVIDIA Control Panel.
2. Select Manage 3D settings

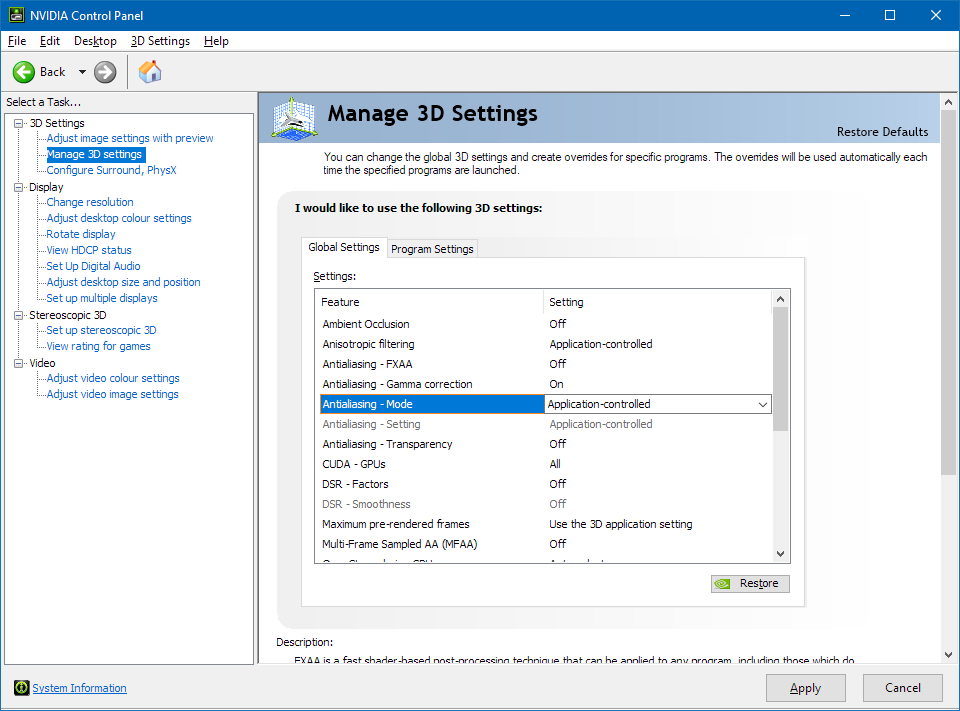

3. Change the Anti-Aliasing mode in the Global Settings list to "Application-controlled" as shown below and click Apply.
4. Also check to make sure the Antialiasing - FXAA option is set to Off
Keywords: blocky, cut off, missing picture.
Last Updated: Friday, January 29, 2021 10:05:05 AM
